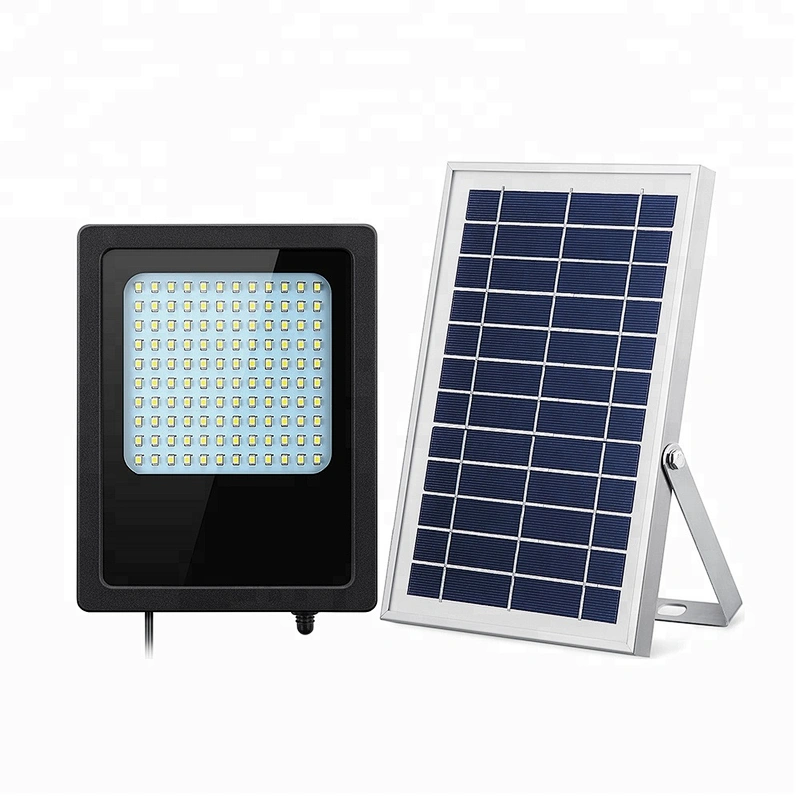

Bonar Best Quality Super Bright Garden Landscape Lighting Outdoor LED Solar spot light
Bonar Best Quality Super Bright Garden Landscape Lighting Outdoor LED Solar spot light
Bonar Best Quality Super Bright Garden Landscape Lighting Outdoor LED Solar spot light
Bonar Best Quality Super Bright Garden Landscape Lighting Outdoor LED Solar spot light

Bonar Best Quality Super Bright Garden Landscape Lighting Outdoor LED Solar spot light

Model NO.:
BT-0
Delivery:
FOB
  • Place of Origin:CN;GUA
  • Light Type:SOLAR
  • Voltage:6V
  • Brand Name:BONAR
  • Rated Power:15W
  • Protection Level:IP65
  • Solar panel:6V 6W
  • Battery:3.7V 6600Ah Li-ion battery
  • Material:Aluminum, plastic, stainless steel, tempered glass
  • LED:super bright 120pcs 3528SMD LED
  • LED color:white /warm white
  • Work time:Can work over 12hrs after charged 8hrs
  • Work mode:Night sensor
  • Waterproof:IP65
  • Warranty:2-3 years
Specification

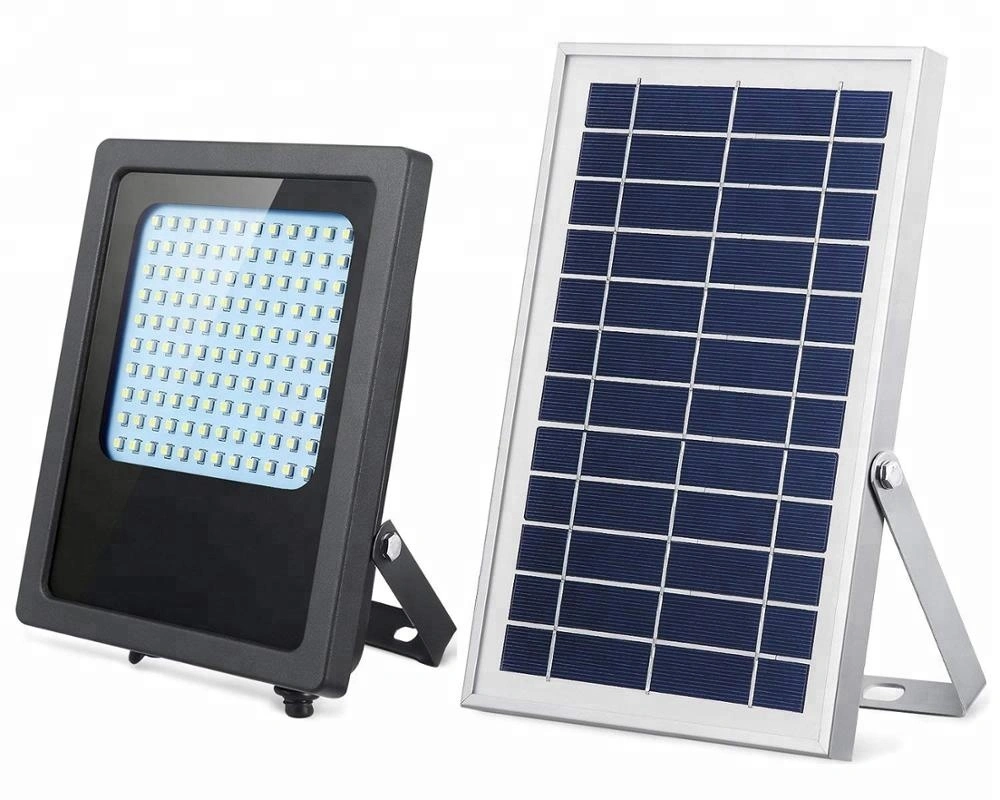

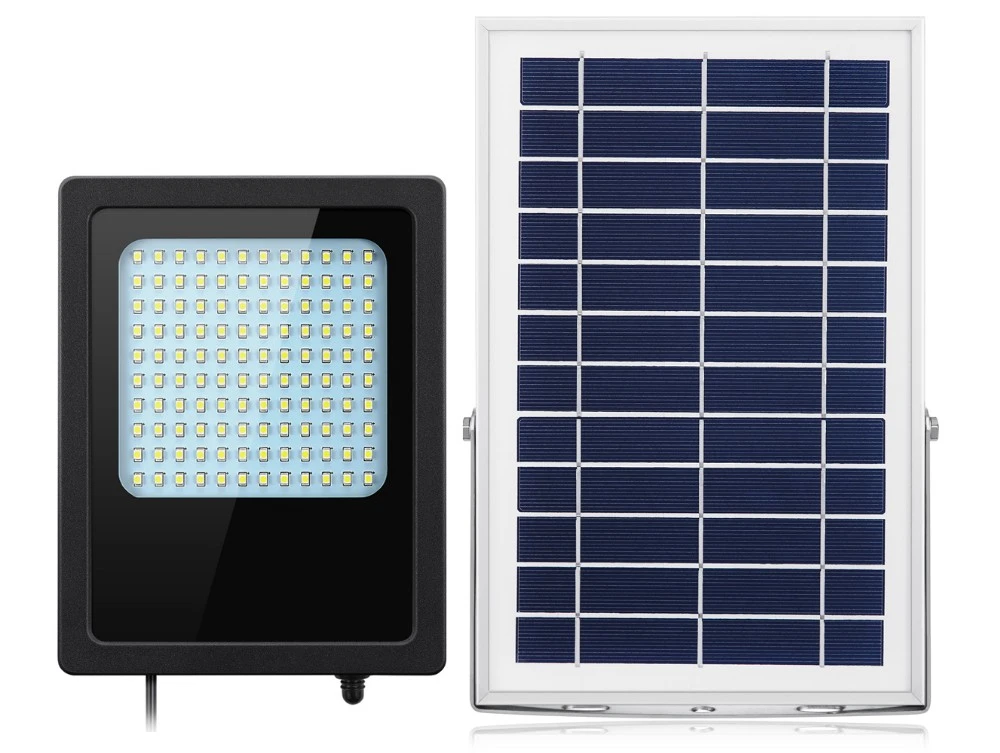

120LEDS Solar flood light Information
Material
Aluminum black
Solar panel
6V/10W Poly (Aluminum)
Battery
3.7V/6.6ah Lithinum battery
Light color
Yellow/white
Led qty
120smd 3528 chip
Temperature
6000-6500K for CW,
3000-3500K for WW
Work mode
Light control
Warranty
2-3 years
Product Description

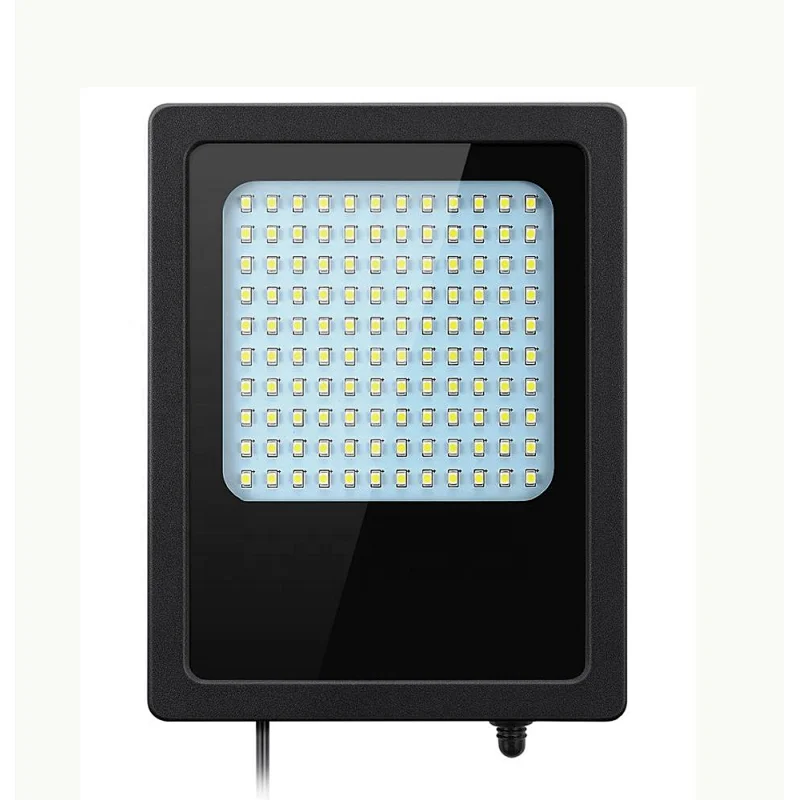

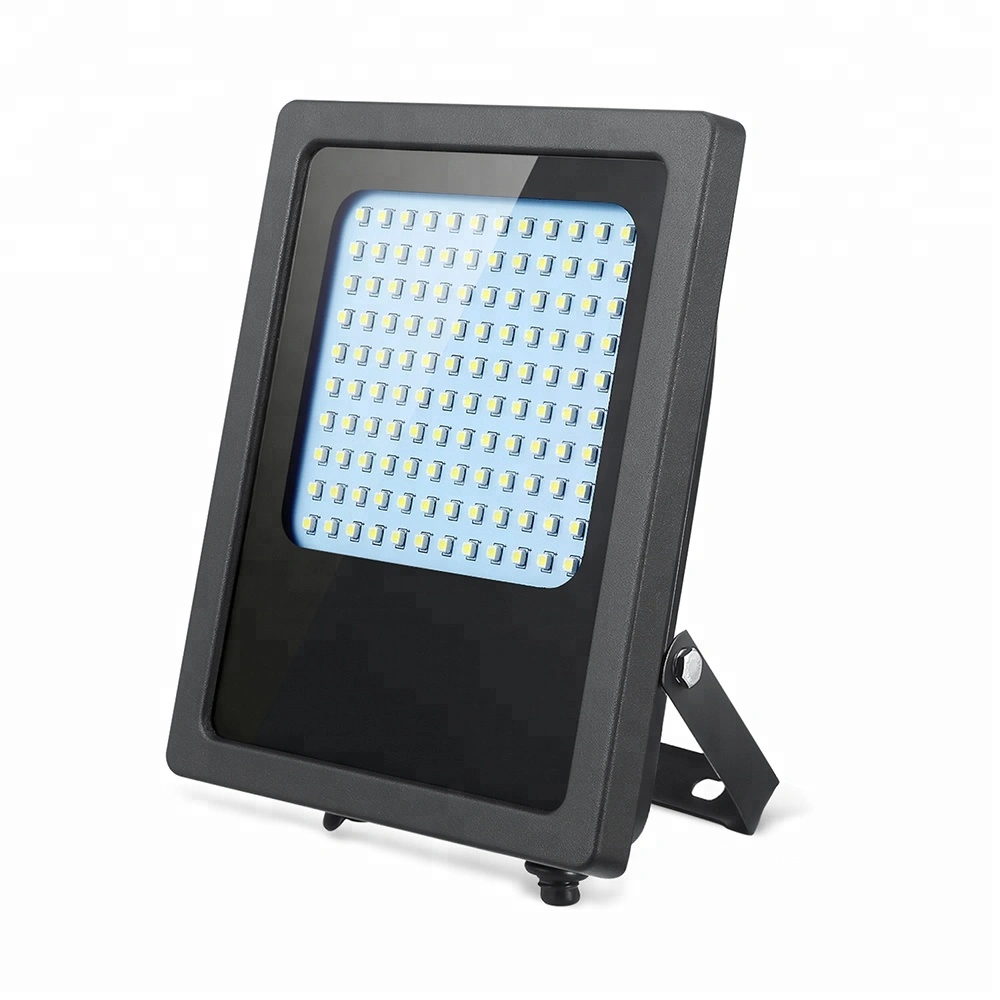

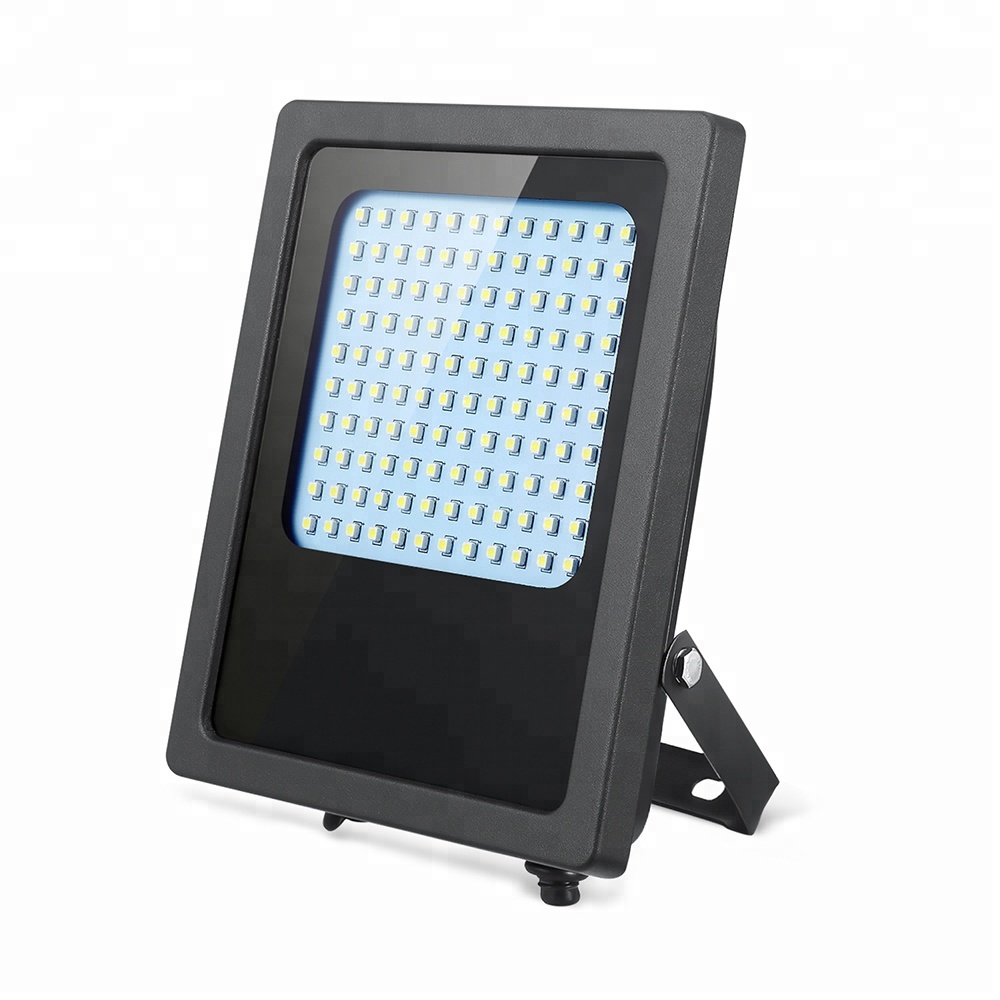

Flood light details

1.Epistar Led chip 3528 smd with 7-9 lumens per led
2.Aluminum material with metal braket ,easy adjustment
3.Tempered glass luminous and it can not become yellow in a long time

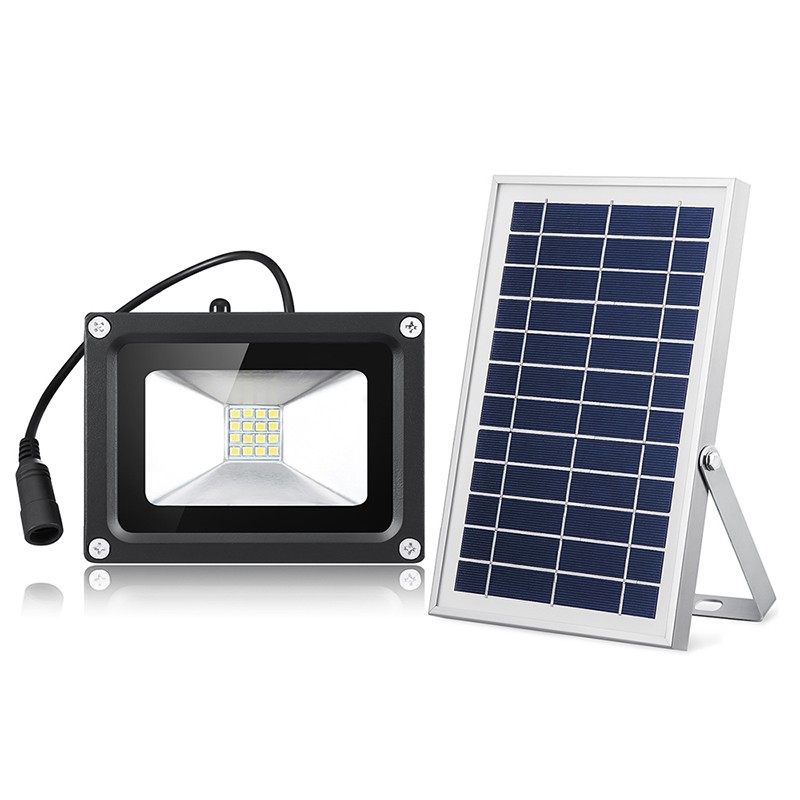

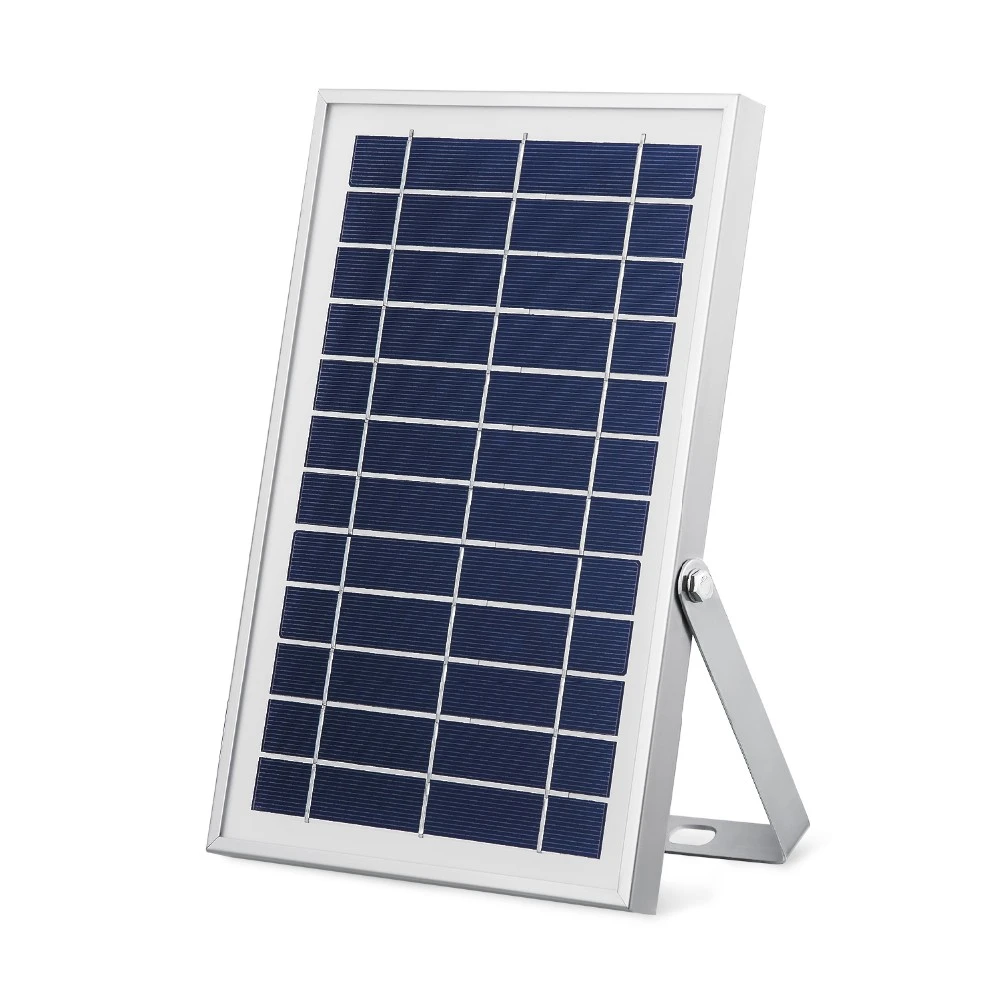

Solar panel Details

1.Import Polycrystalline A-grade poly crystalline Silicon Solar panel 6V 6W with over 10 year life span
2.High Conversion rate and charge the battery faster
3.Aluminum frame ,not easy to be broken during the shippment
4.With stainless stell bracket ,can not rust in a bad install condition

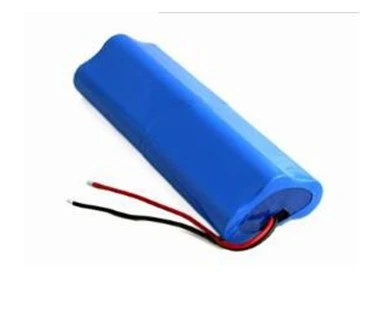

Lithium Details

1.Lithium battery 3.7V 6.6ah
2.A top quality(all new) ,refuse second battery
3.Opererting Temperature:Charge: 0 to 45 ℃, Discharge: -20 to 60 ℃
4.Cycle life:>500cycles, over 3-5 years lifespan
5.With over charging and discharing protection,It is very safe .
6.With two connection ,it is very easy to replace the battery if damaged

Product advantage

♦. Turns on at dust and off at dawn automatically;
♦. Charged free energy from the sun to the batteries;
♦. 16 feet of cable allows you to assemble the solar floodlight anywhere;
♦. The lumens can reach to 24-26lumens per LED with super bright 2835SMD;
♦. The lightness will be increased for 25%-30% (on the original basis of 24-26 lumens per LED with Electroplated NT LED Lence);
♦. Auto-switch device,can be charged automatically whether the switch turns on or off;
♦. Easy installation, no wiring needed;
♦. Waterproof IP66 Weatherproof design, allows products works in all climates;

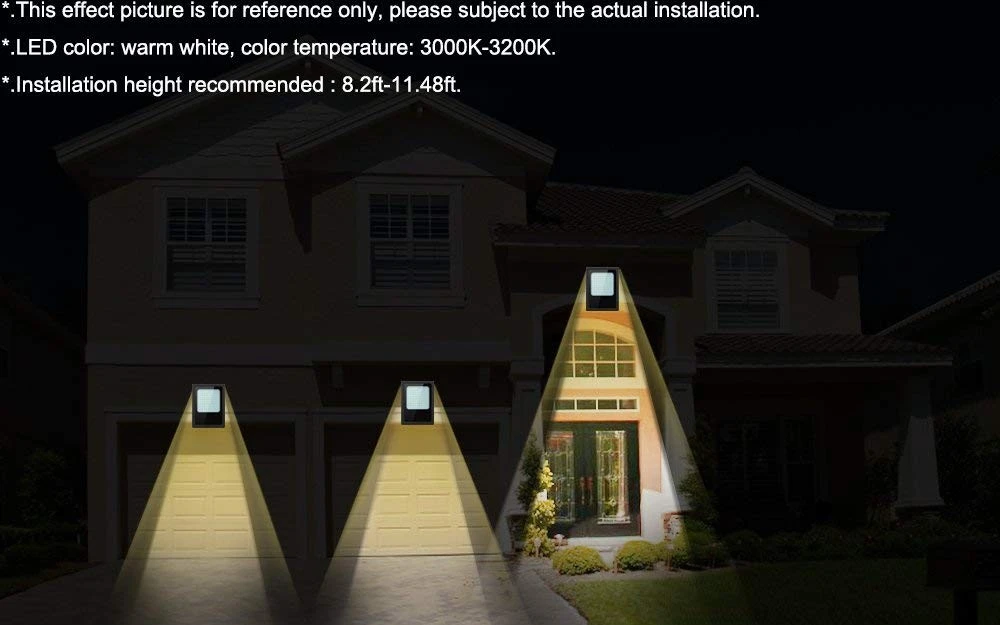

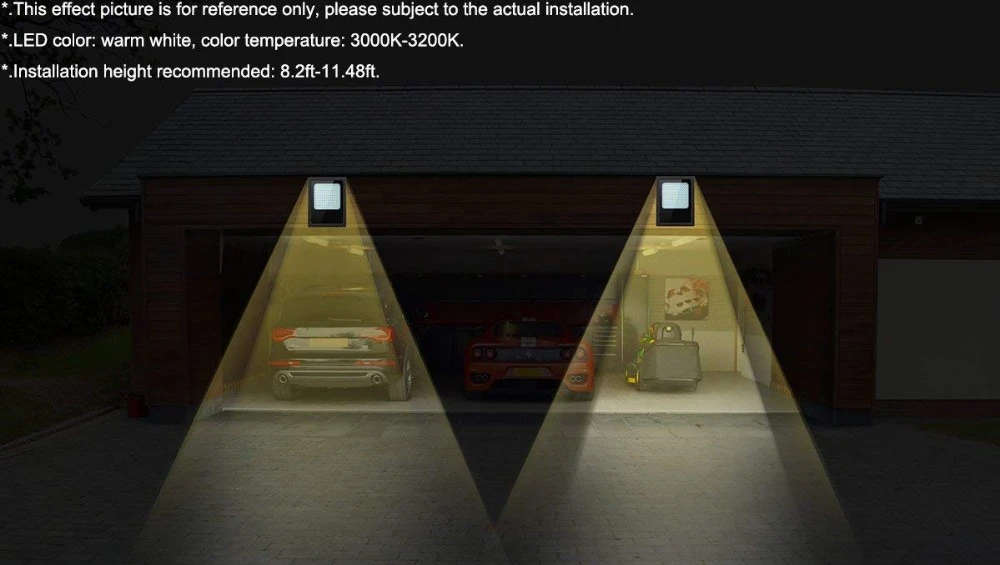

♦. Suggested installation height: 4-5m;
♦. Best choices for lighting billboard, signs, shed, doorway, walkway, garage, park, yard, pool or anywhere need light;
♦. Perfect USE AS: Solar Street Lighting, Solar Billboard Lighting, Solar Landcape Lighting, Solar Stage Lighting, Solar Building Security Light, Solar Accent Light etc.

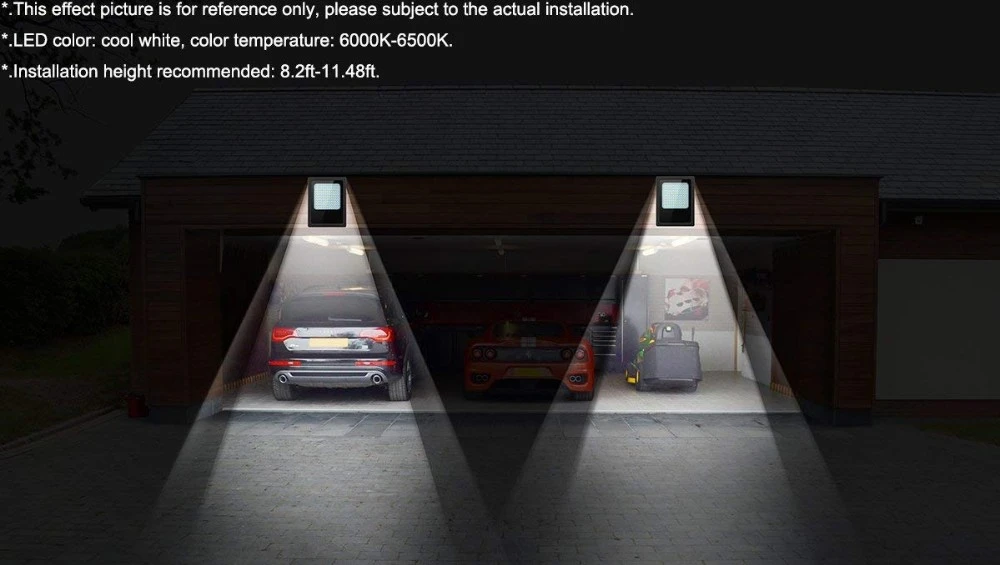

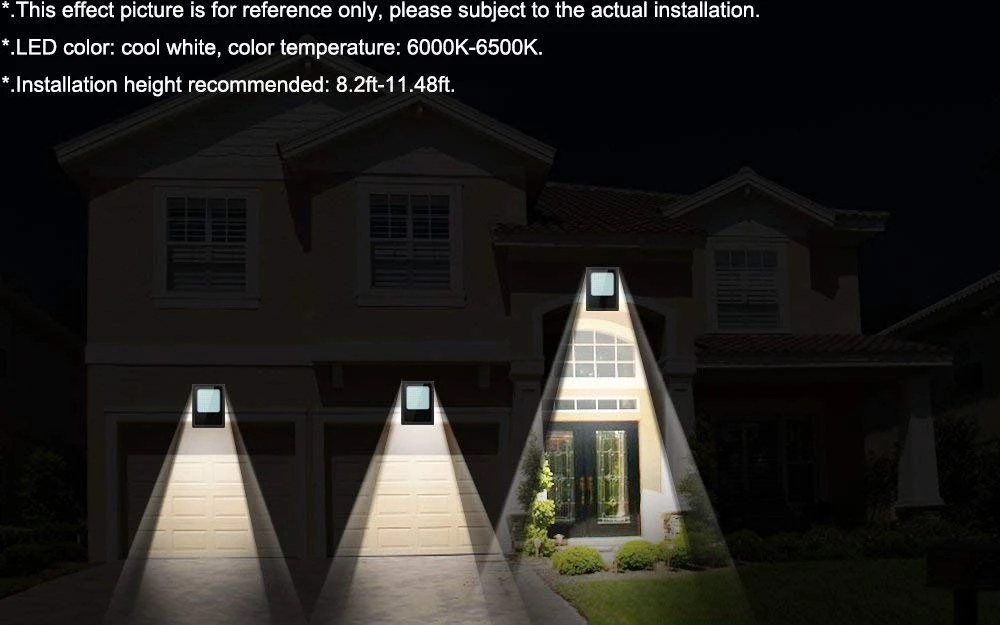

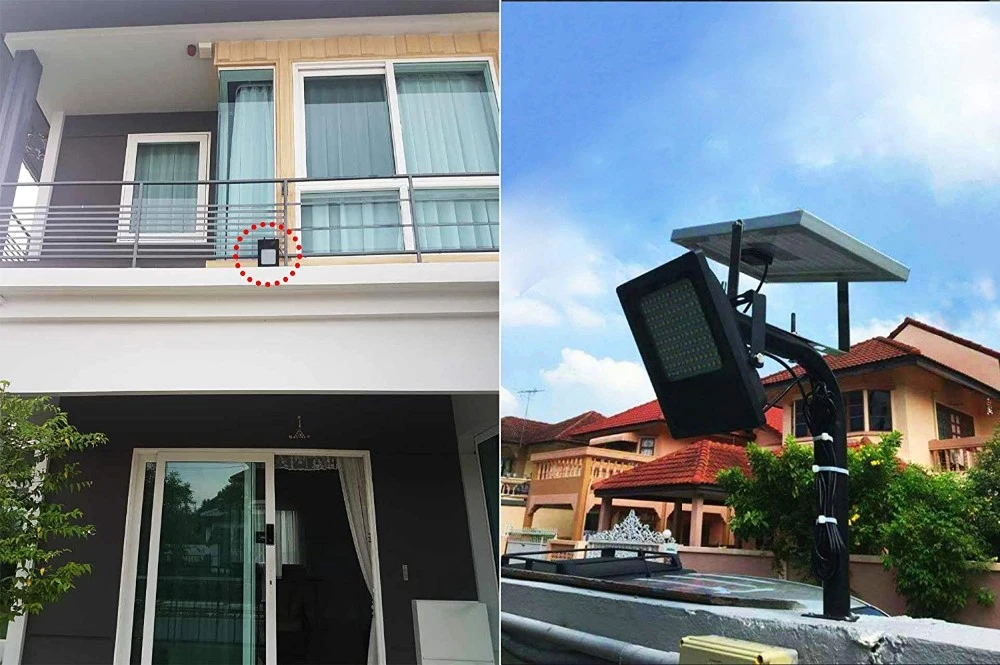

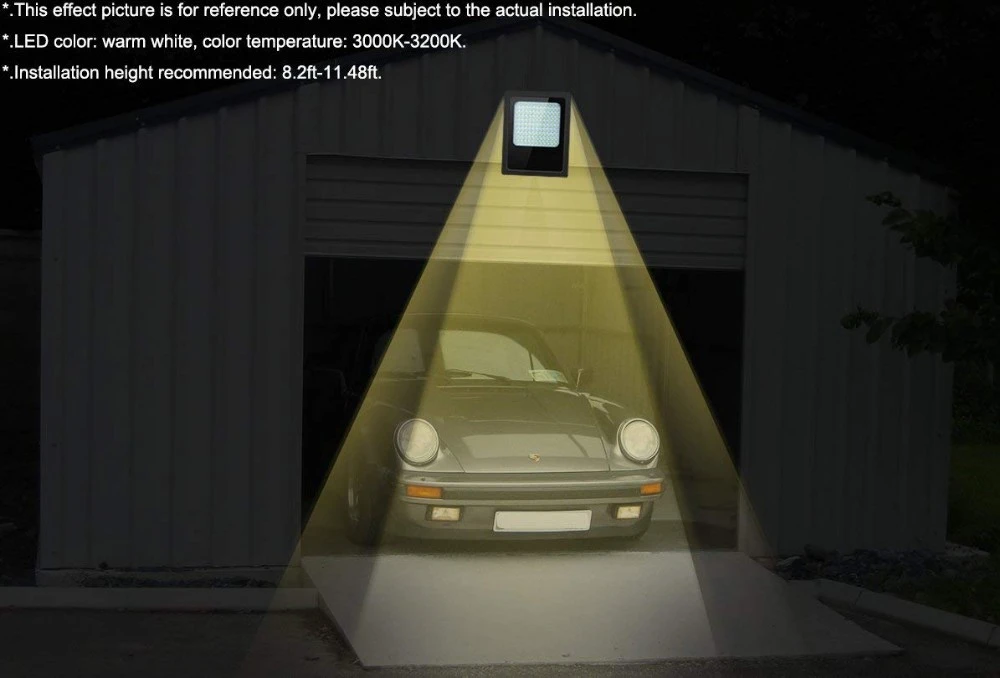

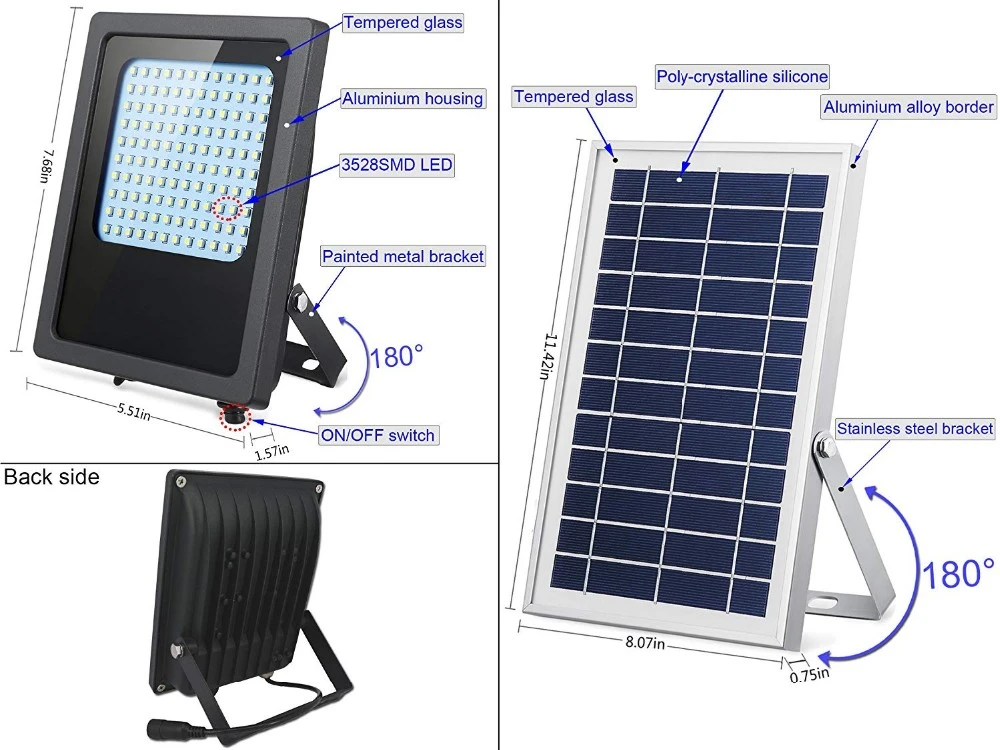

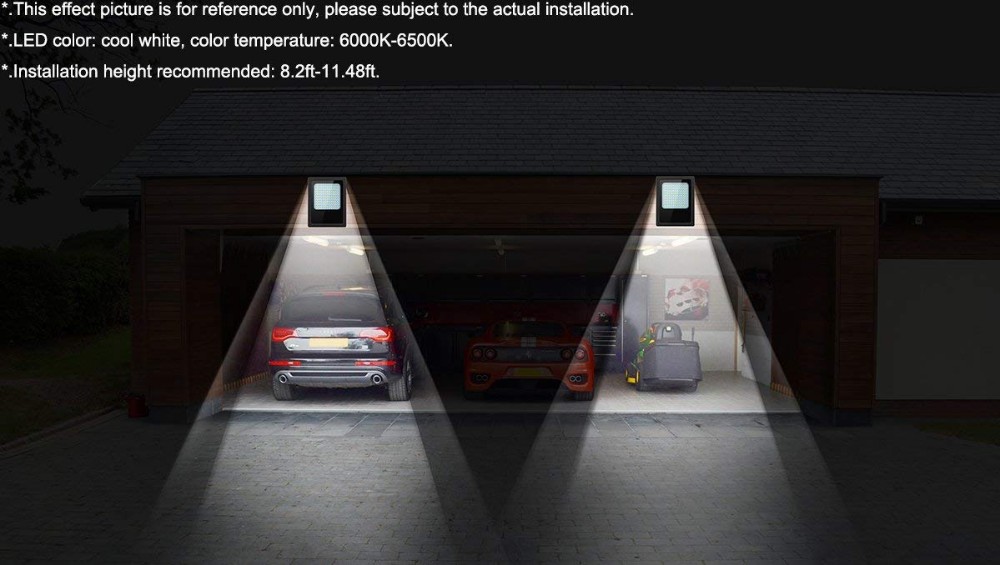

Detailed Image

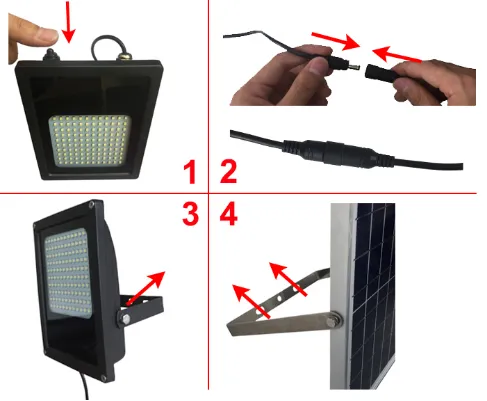

Installation Process

Step 1

Press the switch button to turn on your light. When it lights up, proceed to step 2.

Step 2

Put your solar panel right side up, and connect the cable plugs with full strength, you'll hear the snap into place and your light will be turned off at once if it's well connected (rotate to plug in if it's hard to connect). If it's not well connected, your light may flicker and can't be charged. Because your solar panel senses the sunlight, then controls and charges the light via the cable. (It's light control)

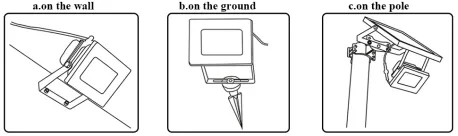

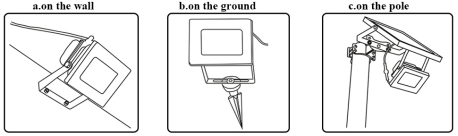

Step 3

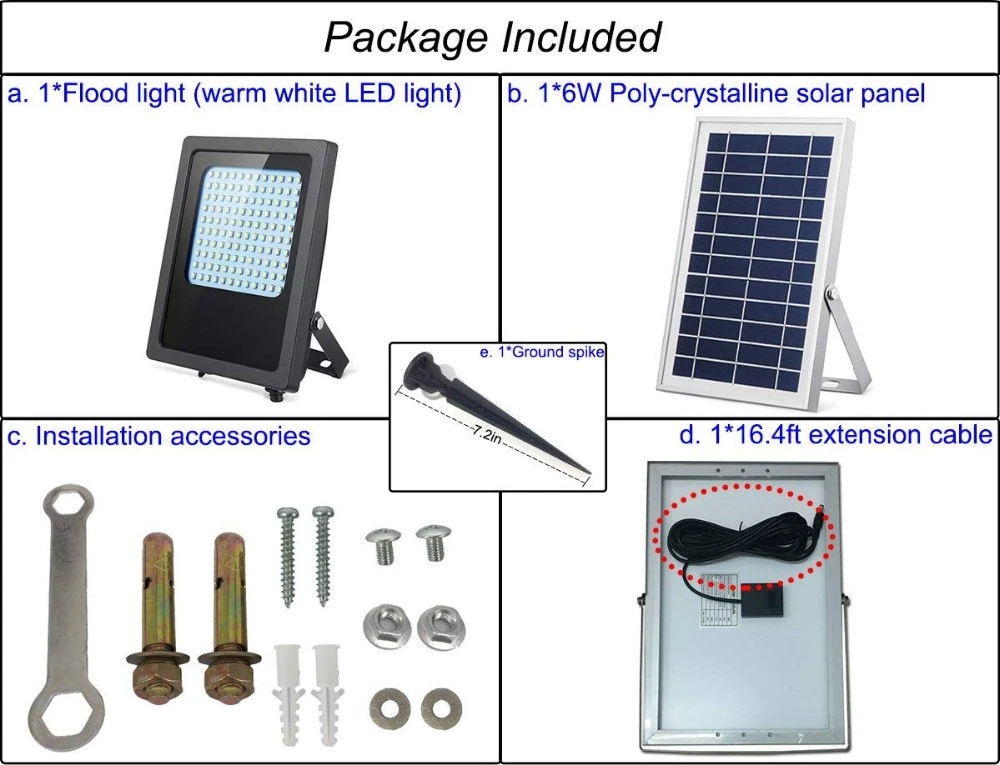

a.On the wall: Use 1 long screw, 1 rawlplug & 1 washer to fix your light to the wall (if you want it to be fixed firmer, you can use 2 long screws, 2 rawlplugs & 2 washers).

b.On the ground: Use 1 short screw & 1 washer to fix your light with the spike,then stick the spike into the ground.

c.On the pole: Use 1 short screw,1 washer & 1 nut to fix your light with your solar panel.

Step 4

Choose a secure surface (wall, roof, tree trunk...) which is facing south. Drill two holes into the wall, put 2 big screws into the holes and fix your solar panel to the screws. Please make sure that there is no houses or trees block the sunlight. Charging time should be 8 hours or more. (depends on sunlight intensity)

Warm tips of installation:

*Please install it in the daytime.

*Please make sure that there is no other light sources shine on your solar panel at night, because it's light control.

*Please note that the distance between your light and solar panel should be not over 16.4 feet.

*Please note that we don't provide hoop or pole for pole mounting.

*In order to optimize your light's performance, please switch it off manually after the installation, and charge it for 2-3 days before initial use, then switch it on at the second or third night, then it will work automatically day after day. (If you are not sure it's on or off, disconnect the cables and press the switch button to test it.)

Certifications

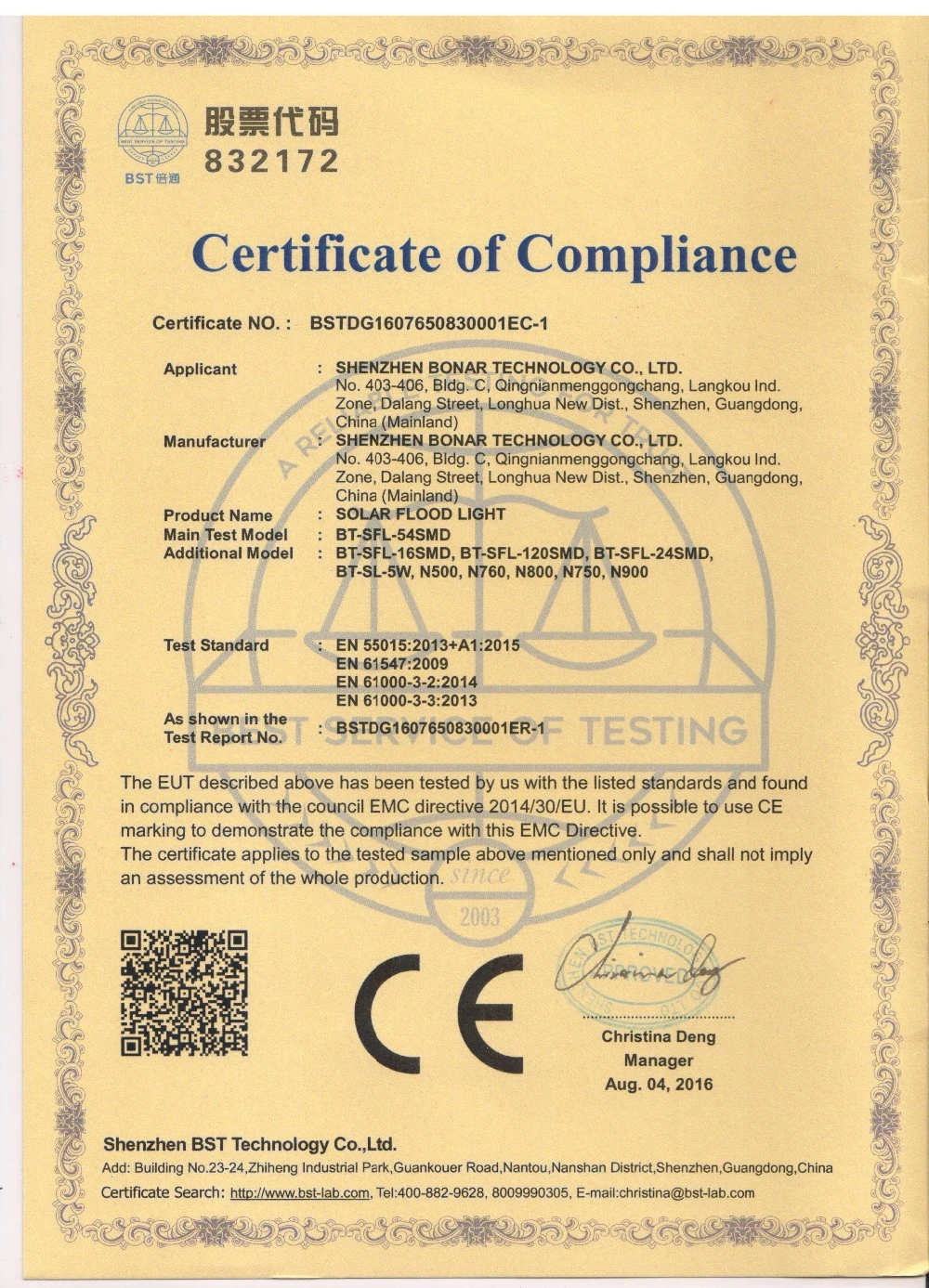

We are the main vendor for the USA and EU. this is the CE certificate for your check ,and we also can offer you the solar light report

We are the main vendor for the USA and EU. this is the CE certificate for your check ,and we also can offer you the solar light report

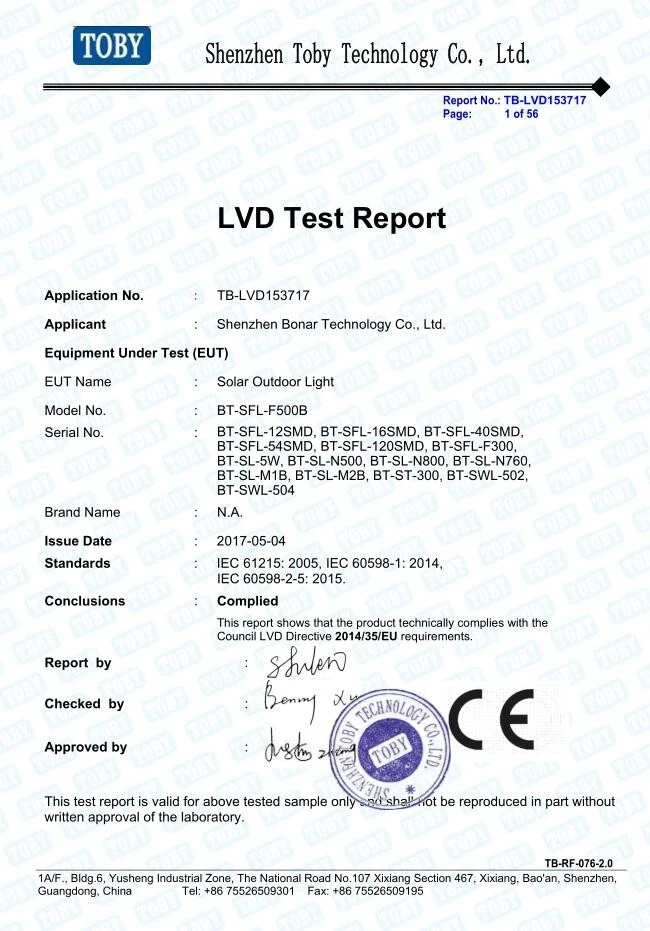

Our solar flood light are very welcom for the Asia and middle east ,this is our produt LVD Test report .this can save some SASO certificate money for the S.A client

We have over 10 years foreigh experience in the solar outdoor light ,can offer you the Saso certificate ,lvd as your requirement .and know the way of the dealing with S.A,Tailand etc .

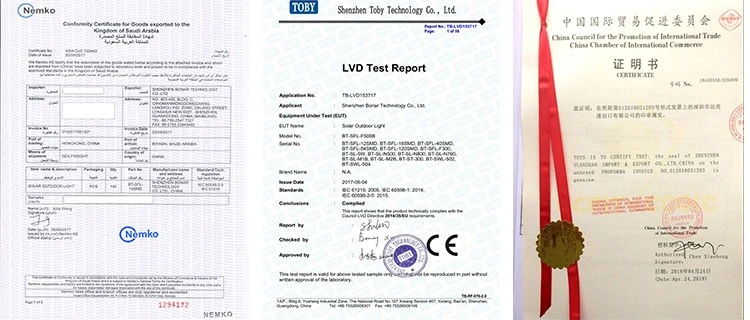

This is the SASO confirmed by Nemko , lvd test report and Ci certificate.

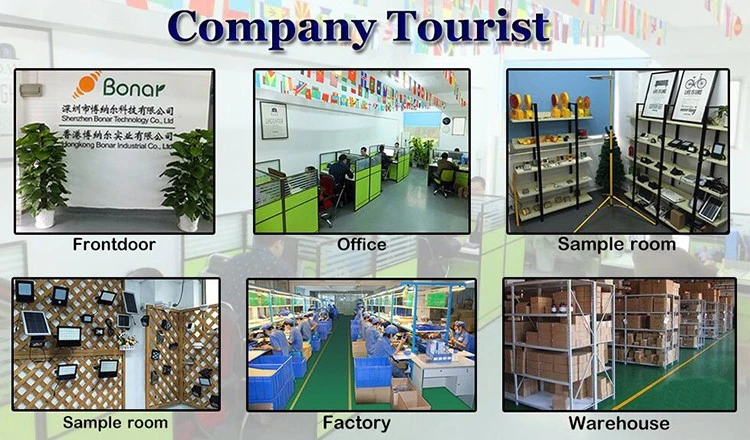

Our Company

Foundedin 2012, based in Shenzhen, built manufacturing center and office in Shenzhen Longhua, aim to offer the best quality solar outdoor lights at very competitive prices to customers all over the world.

Bonar has 5 years experiences in manufacturing solar outdoor products: Solar Flood Light, Solar Wall Light, All In One Solar Street Light etc.

Bonar products has been exported to more than 80 countries, in which with around 30% to Southeast Asia, 30% to Middle East, 15% to Africa, 15% to North America, 10% to the rest of the world. Bonar has achieved sales turnover of 10 million USD in 2016 and targets 15 million USD for 2017.

Bonar factory covers more than an area of 1000 squares, specializing in the research & development, design, production & marketing of solar outdoor lights with registered capital of RMB 1000,000. Through nearly 6 years effort, Bonar group has become a mature high-technology solar outdoor lights manufacturer with constant creativity & unremitting effort. We're going on the road of energy saving & environmental protection, keep going on and on....

We Bonar, sincerely invite you to be our distributors & wholesalers.

We Bonar hereby look forward to witness the bright future of solar outdoor lighting by jointed efforts with every valuable customer.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
