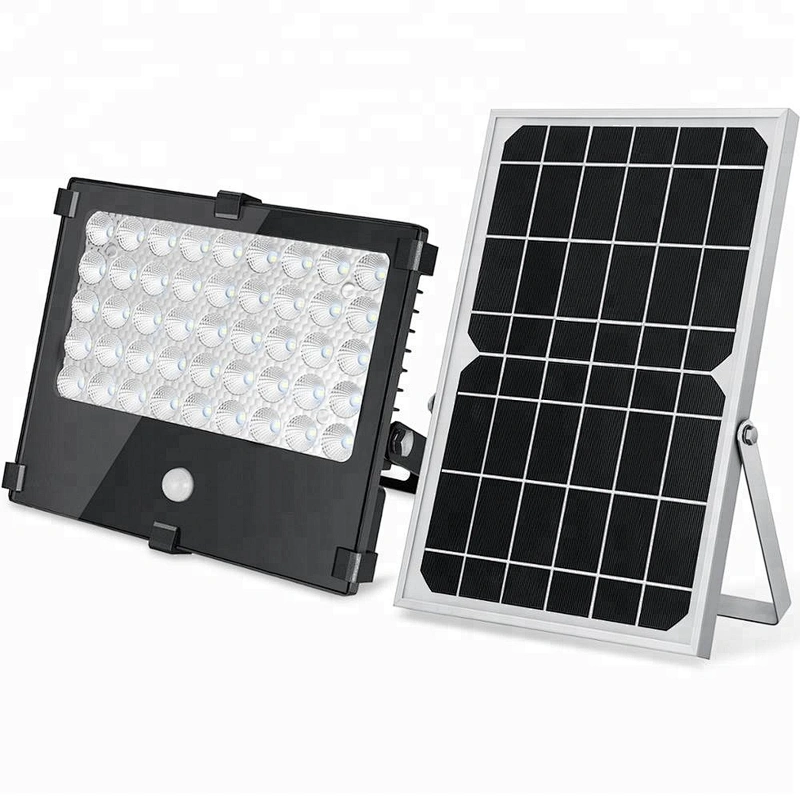

Top quality Perfect brightness garden light solar lights outdoor motion sensor
Top quality Perfect brightness garden light solar lights outdoor motion sensor
Top quality Perfect brightness garden light solar lights outdoor motion sensor
Top quality Perfect brightness garden light solar lights outdoor motion sensor
Top quality Perfect brightness garden light solar lights outdoor motion sensor
Top quality Perfect brightness garden light solar lights outdoor motion sensor
Top quality Perfect brightness garden light solar lights outdoor motion sensor

Top quality Perfect brightness garden light solar lights outdoor motion sensor

Model NO.:
BT-F500MB
Delivery:
FOB
  • Place of Origin:CN;GUA
  • Light Type:SOLAR
  • Model Number:BT-F500MB
  • Brand Name:Bonar
  • Rated Power:20W
  • Protection Level:IP65
  • Voltage:6V
  • Material:Aluminum
  • solar panel:6V 10W mono
  • Battery:LI-ion battery, 3.7V 10.4AH
  • LED:45PCS 2835SMD
  • LED color:White, Warm white
  • Work mode:DIM/BRIGHT/OFF(Can Be Customized)
  • Work time:4-5 cloudy or rainy days when charging one day
  • Application:Path/park/fence/wall/garden/cottage
  • Warranty:2-3 Year
  • Waterproof:IP65
Specification

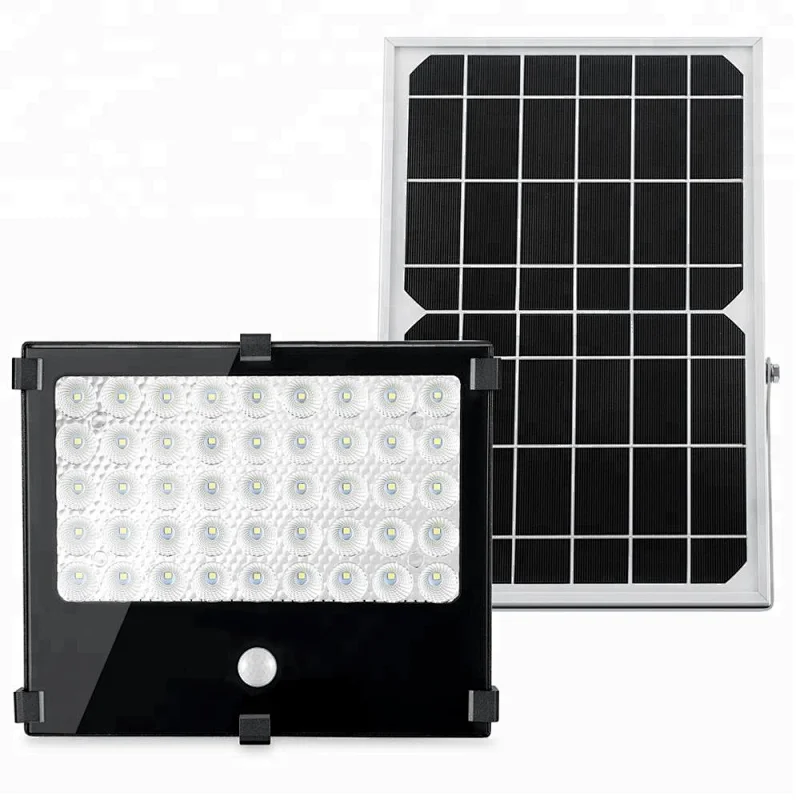

F500MB Solar flood light motion sensor
Material
Aluminum black
Solar panel
6V/10W Mono (Aluminum)
Battery
3.7V/10.4AH Lithinum battery
light color
White /warm white
LED qty
45pcs 2835SMD LED with Electroplated NT LED Lence
temperature
6000-6500K for CW
3000-3500K for WW
Work mode
Light control with motion sensor
Warranty
2-3 years
Product Description

F500MB motion sensor flood light Details

1.Epistar Led chip 2835 smd with 24 lumens per led .
2.The lightness will be increased for 25%-30% (on the original basis of 24-26 lumens per LED with Electroplated NT LED Lence)
3.Aluminum material with metal braket ,easy adjustment
4.Tempered glass luminous and it can not become yellow in a long time

10W mono solar panel  Details

1.Import Polycrystalline A-grade mono crystalline  Solar panel 6V 10W with over 10-15 year life span .
2.High Conversion rate and charge the battery fast
3.Aluminum frame ,not easy to be broken during the shippment
4.With stainless stell bracket ,can not rust in a bad install condition

Battery Details

1.Lithium battery 3.7V 10.4AH
2.A top quality(all new) ,refuse second battery
3.Opererting Temperature:Charge: 0 to 45 ℃, Discharge: -20 to 60 ℃
4.Cycle life:>500cycles, over 3-5 years lifespan
5.With over charging and discharing protection,It is very safe
6.With two connection ,it is very easy to replace the battery if damaged

F500MB motion sensor flood light advantage


1.Can work over 16hrs under dim work mode;
Motion sensor times: 300 times once fully charged, can last 30 seconds once people pass by, then turns to dim work mode once people left


2.When they are connected and switched on manually, it will work automatically with sunrise and sunset. Charges at daytime and auto on at sunset

3.It can only work automatically when it's switched on, if you switch it off, please switch it on next time when you want to use it for lighting.

4.Please don't worry, it still can be charged when it's switched off. No worry about no power for next time use. (Most others in the market can't be charged if it's switched off manually)


♦. Turns on at dust and off at dawn automatically;
♦. Charged free energy from the sun to the batteries;
♦. 16 feet of cable allows you to assemble the solar floodlight anywhere;
♦. The lumens can reach to 24-26lumens per LED with super bright 2835SMD;
♦. The lightness will be increased for 25%-30% (on the original basis of 24-26 lumens per LED with Electroplated NT LED Lence);
♦. Auto-switch device,can be charged automatically whether the switch turns on or off;
♦. Easy installation, no wiring needed;
♦. Waterproof IP65 Weatherproof design, allows products works in all climates;

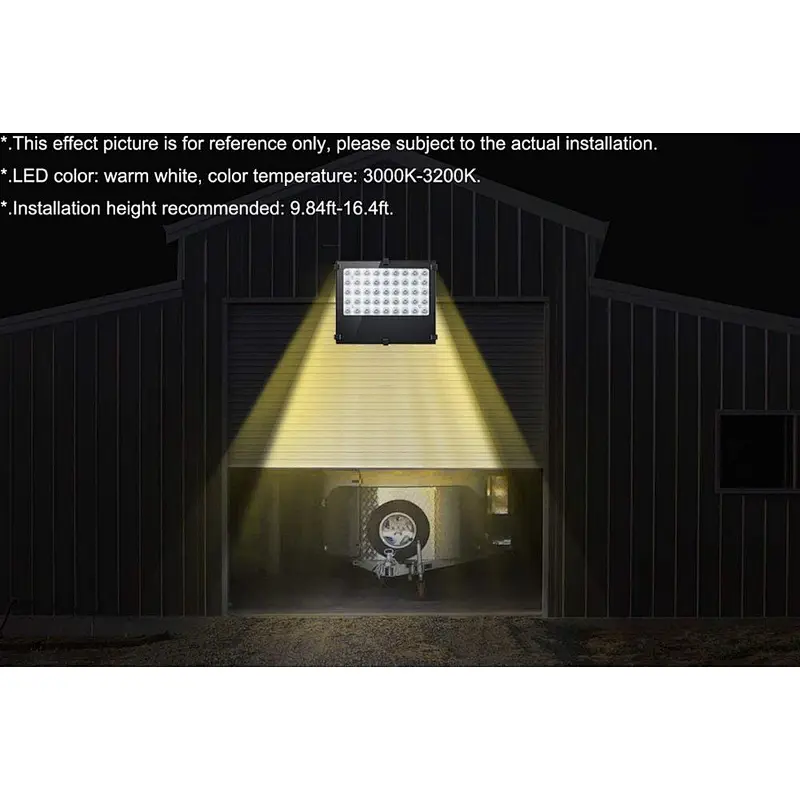

♦. Suggested installation height: 4-5m;

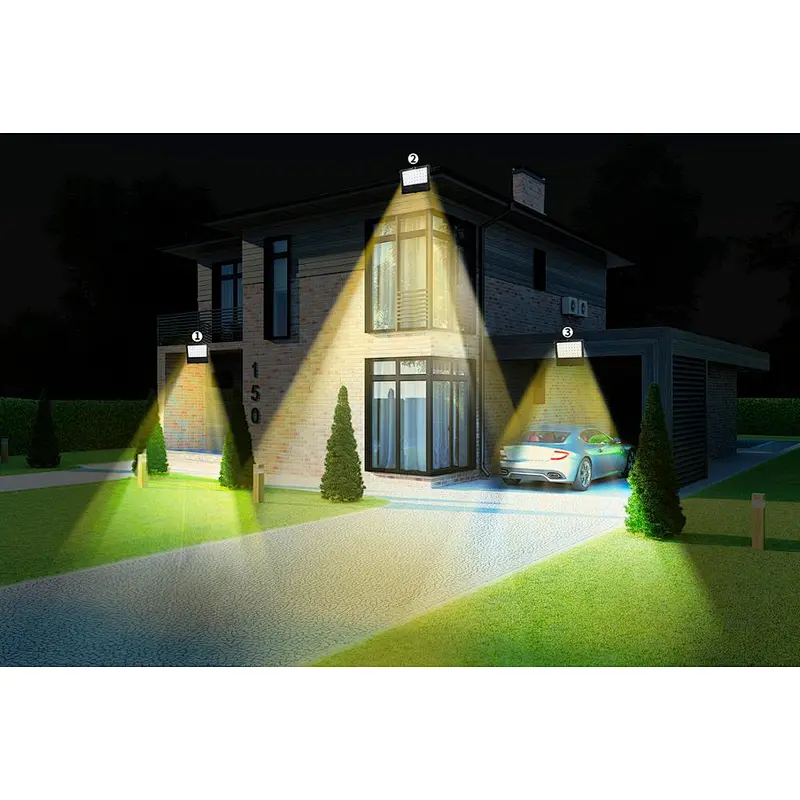

♦. Best choices for lighting billboard, signs, shed, doorway, walkway, garage, park, yard, pool or anywhere need light;
♦. Perfect USE AS: Solar Street Lighting, Solar Billboard Lighting, Solar Landcape Lighting, Solar Stage Lighting, Solar Building Security Light, Solar Accent Light etc.

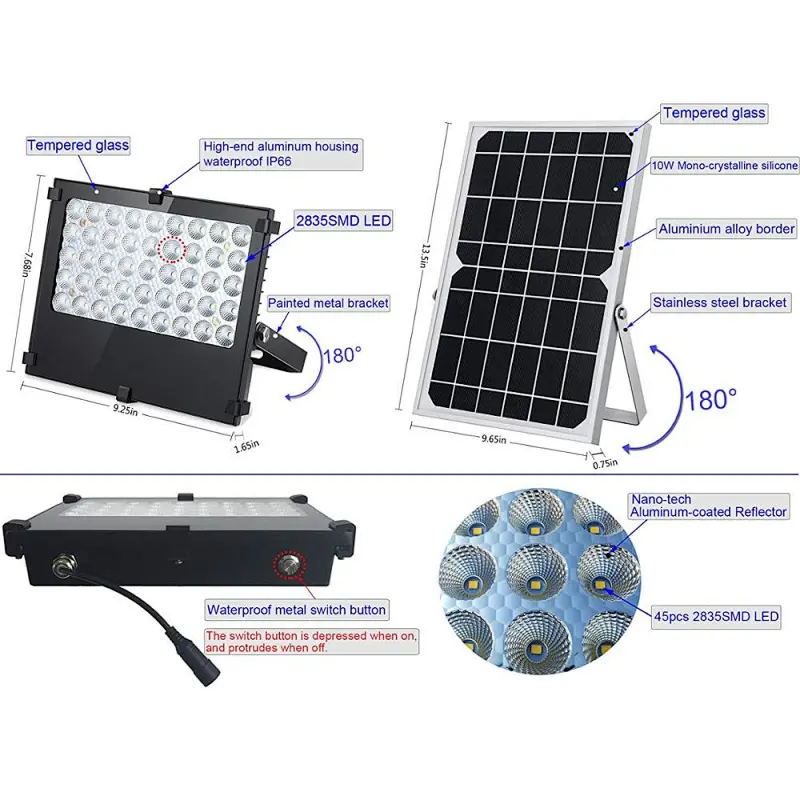

Detailed Image

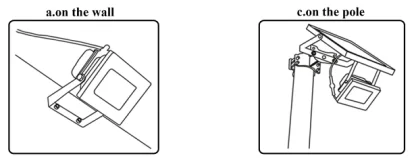

Installation Process

Step 1

Press the switch button to turn on the light. When it lights up, proceed to step 2. (the switch button is depressed when on, and protrudes when off)


Step 2

 Put the solar panel right side up, and connect the cable plugs with full strength, you'll hear the snap into the place and your light will be turned off at once if it's well connected (rotate to plug in if it's hard to connect). If it's not well connected, your light may flicker and can't be charged.


Step 3

Choose a secure surface (wall, roof, tree trunk...) which is facing south. Drill two holes into the wall, put 2 big screws into the holes and fix the solar panel to the screws. Please make sure that there is no houses or trees block the sunlight. Charging time should be 8 hours or more. (depends on sunlight intensity)

Step 4

Ditto fix the light with two big srews on a secure surface for illuminating. Please note that the distance between the light and solar panel should not be over 16.4 feet.

Warm tips of installation:

*Please install the flood light & solar panel in the daytime.
*Please make sure that there is no other light sources shine on solar panel at night, because it's light control. The flood light won't work if there's other light shine on solar panel.
*.In order to maximize the waterproof performance, please make sure the switch down toward during insallation.
*In order to optimize its performance, please switch it off manually after the installation, and charge it for 2-3 days before initial use, then switch it on at the second or third night. It will work automatically day after day.


(the switch button is depressed when on, and protrudes when off)

Certifications

We are the main vendor for the USA and EU. this is the CE certificate for your check ,and we also can offer you the solar light report


We are the main vendor for the USA and EU. this is the Rohs certificate for your check ,and we also can offer you the solar light report


our solar flood light are very welcom for the Asia and middle east ,this is our produt LVD Test report .this can save some SASO certificate money for the S.A client


We have over 10 years foreigh experience in the solar outdoor light ,can offer you the Saso certificate ,lvd as your requirement .and know the way of the dealing with S.A,Tailand etc .
this is the SASO confirmed by Nemko , lvd test report and Ci certificate .

Company Information

Foundedin 2012, based in Shenzhen, built manufacturing center and office in Shenzhen Longhua, aim to offer the best quality solar outdoor lights at very competitive prices to customers all over the world.
Bonar has 5 years experiences in manufacturing solar outdoor products: Solar Flood Light, Solar Wall Light, All In One Solar Street Light etc.


Bonar products has been exported to more than 80 countries, in which with around 30% to Southeast Asia, 30% to Middle East, 15% to Africa, 15% to North America, 10% to the rest of the world. Bonar has achieved sales turnover of 10 million USD in 2016 and targets 15 million USD for 2017.


Bonar factory covers more than an area of 1000 squares, specializing in the research & development, design, production & marketing of solar outdoor lights with registered capital of RMB 1000,000. Through nearly 6 years effort, Bonar group has become a mature high-technology solar outdoor lights manufacturer with constant creativity & unremitting effort. We're going on the road of energy saving & environmental protection, keep going on and on....


We Bonar, sincerely invite you to be our distributors & wholesalers.


We Bonar hereby look forward to witness the bright future of solar outdoor lighting by jointed efforts with every valuable customer.
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

Related Products

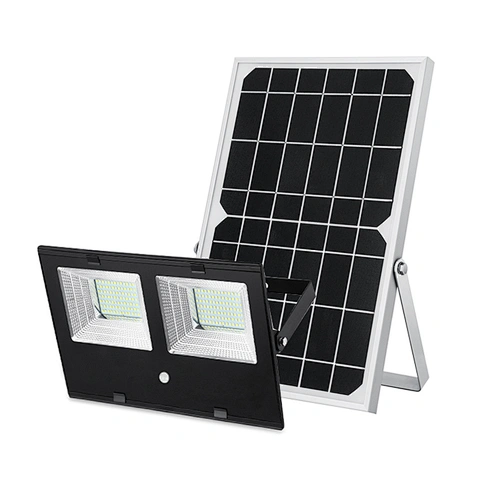

F500B solar flood light
